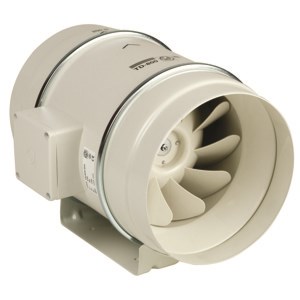

TD-6000/400 TRIF (400V50HZ) N8
|
Product code: 5211935000
Parameters
| Max outside temperature (C): | -20 +40 |
|---|---|
| Power (kW): | 0.59 |
| Voltage (V): | 400V, 50Hz |
| Current (A): | 1.05 |
| Revolutions (x/min): | 1400 |
| Air flow (m³/h): | 5231 |
| Pressure (max Pa): | 280 |
| Weight (kg): | 26 |
| Noise level (dB): | 61 |
| Max airflow temperature (C): | -20 +60 |
| IP code : | IP 54 |
| On Stock : | - |

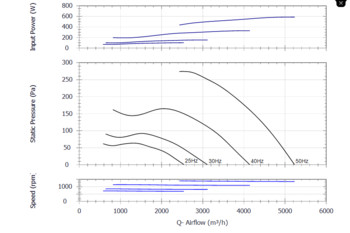

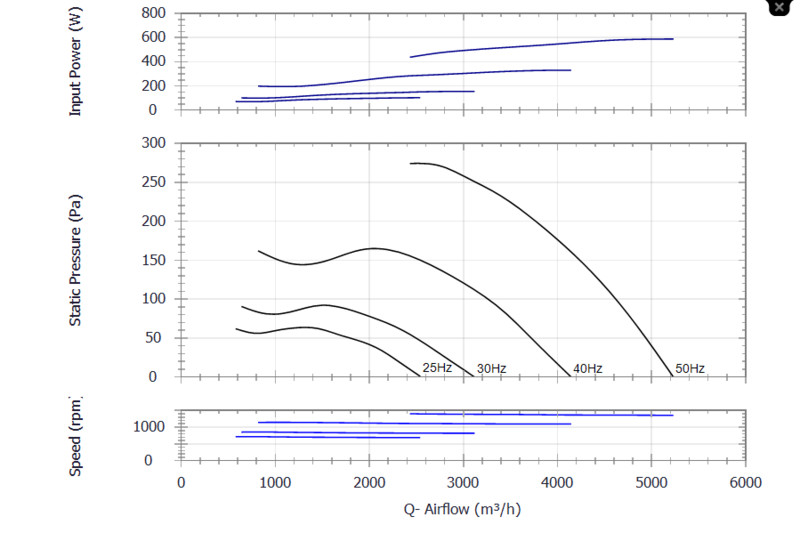

Characteristics

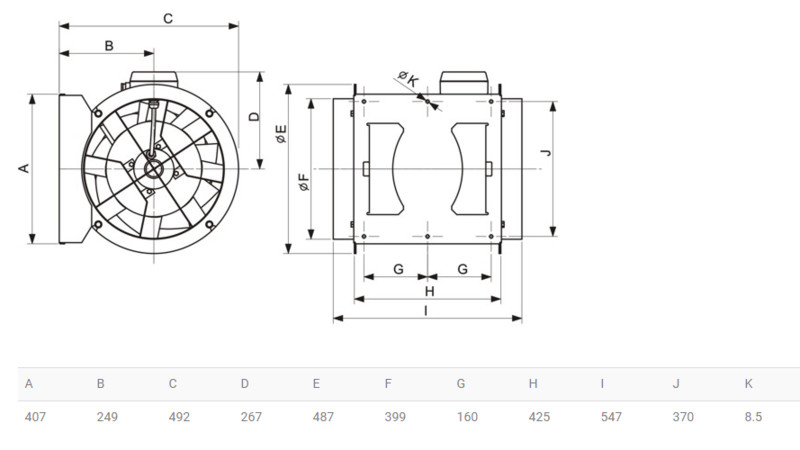

Dimensions
